Posts Loop Block with ACF and block.json

Build a custom block to loop through your WordPress blog posts with Advanced Custom Fields and block.json.


Steps in this guide:

  1. Creating our fields
  2. Register our blocks with block.json
  3. Handle our block data
  4. Create the block render template
  5. Using the block

Creating our fields

Sometimes I like to start with creating my field groups because it gets me thinking about how I’m going to use the block. I know this block will interface with the WP_Query class, so a few fields immediately come to mind.

  1. Selection Type
    We should be able to display the most recent posts or hand pick them.
  2. Category
    If we’re displaying the most recent posts, we should be able to limit them to a specific category.
  3. Limit
    If we’re displaying the most recent posts, we should be able to set a limit for how many are returned.
  4. Select Posts
    If we choose “select posts”, we’ll want a relationship field to hand pick our posts from a list.

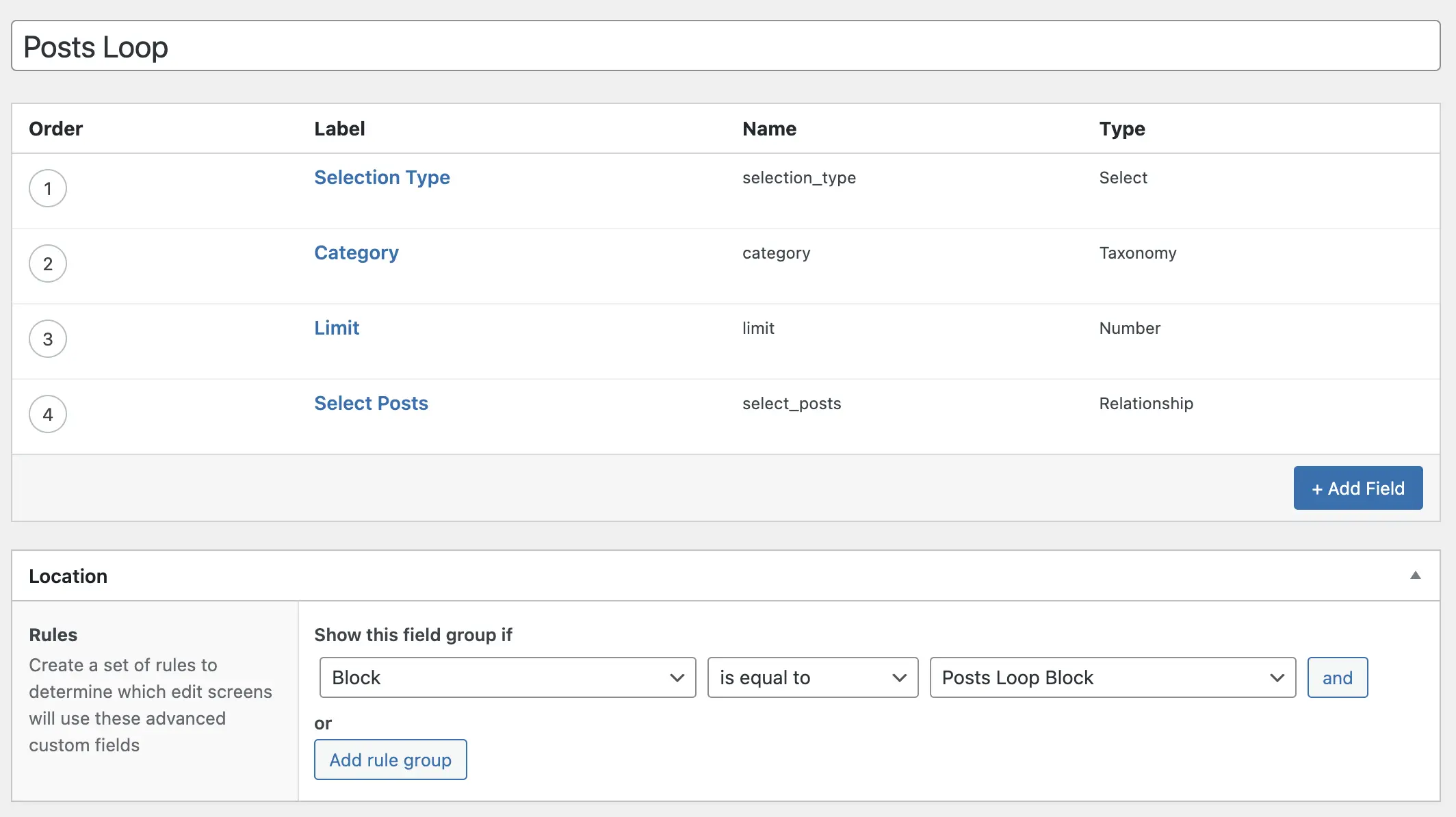

"Field Group"

The Category and Limit fields are conditionally displayed if the Selection Type is “recent”. Likewise, the Select Posts field is only displayed if the Selection type is “select posts”.

Want to import this field group into ACF Pro? Get the JSON – Once you’ve imported the JSON into ACF, make sure to update the location rules to match your block name after you register your block.

Register the block

Since WP 6.0, the recommended way of registering blocks is via block.json. This is a big deal, because keeping our ACF blocks as close to core as possible allows us to take advantage of many native block features.

You can register blocks from a plugin or your theme. For simplicity, and to make this guide more accessible to beginners, I’ll be doing this directly in my theme. Go ahead and stub out the following structure:

/theme-root

└─── /blocks
│   │   register-blocks.php
│   │
│   └─── /posts-loop
│       │   block.json
│       │   block.php
│       │   template.php

In /blocks/posts-loop/block.json, we’ll configure our block:

{
    "name": "posts-loop",
    "title": "Posts Loop Block",
    "description": "Displays a list of posts.",
    "category": "theme",
    "apiVersion": 2,
    "keywords": [
        "posts",
        "blog"
    ],
    "acf": {
        "mode": "preview",
        "renderTemplate": "blocks/posts-loop/block.php"
    },
    "supports": {
        "anchor": true
    }
}

Inside of /blocks/register-blocks.php, we’ll include the path to our block’s json file. This is where we’ll register all of our future blocks:

register_block_type( get_template_directory() . '/blocks/posts-loop/block.json' );

In your functions.php you can include the path to /blocks/register-blocks.php.

/**
 * Register ACF Blocks
 */
require get_template_directory() . '/blocks/register-blocks.php';

Handle our block data

/blocks/posts-loop/block.php will serve as the model / controller for our block. It’s where we’ll handle all of the data that gets passed into the render template or the view. This helps keep things clean and organized so our logic is one place (block.php) and our front-end template (template.php) is in another.

Make sure to read the comments in the code sample to understand what’s happening:

<?php
/**
 * Posts Loop Block
 */

// $data is what we're going to expose to our render template
$data = array(
	'selection_type' => get_field( 'selection_type' ),
	'category' => get_field( 'category' ),
	'limit' => get_field( 'limit' ),
	'select_posts' => get_field('select_posts')
);

// Dynamic block ID
$block_id = 'posts-loop-block-' . $block['id'];

// Check if a custom ID is set in the block editor
if( !empty($block['anchor']) ) {
    $block_id = $block['anchor'];
}

// Block classes
$class_name = 'posts-loop-block';
if( !empty($block['className']) ) {
    $class_name .= ' ' . $block['className'];
}

// WP Query Args
$queryArgs = array(
    'post_type' => 'post',
);

// If the selection type is "recent", check  for categories and limit
if ( $data['selection_type'] == 'recent' ) {
    $queryArgs['category__in'] = $data['category'];
    $queryArgs['posts_per_page'] = $data['limit'];
}

// If the selection type is "select", pass in the selected post IDs
if ( $data['selection_type'] == 'select' ) {
    $queryArgs['post__in'] = $data['select_posts'];
}

// Create a new WP_Query instance
$posts = new WP_Query( $queryArgs );

// Expose the response of WP_Query to the render template
$data['posts'] = $posts;

/**
 * Pass the block data into the template part
 */

get_template_part(
	'blocks/posts-loop/template',
	null,
	array(
		'block'      => $block,
		'is_preview' => $is_preview,
		'post_id'    => $post_id,

		'data'       => $data,
        'class_name' => $class_name,
        'block_id'   => $block_id,
	)
);

$block, $is_preview, and $post_id are variables given to us by the block registration API.

$block
Contains all of the attributes of our block from the block API. We have access to the block’s name, description, ID, class names, and many other attributes that come from the block editor.

$is_preview
Either true or false – it tells us whether the block is currently being viewed in the block editor (true) or the front-end (false).

$post_id
The ID of the post or page that the block is being viewed on.

The other three variables, $data, $class_name, and $block_id are variables that we have defined ourselves.

Create the block render template

Now we can create the block’s render template: /blocks/posts-loop/template.php.

<?php
/**
 * Block Name: Posts Loop Block
 *
 * Description: Displays a list of posts.
 */

// The block attributes
$block = $args['block'];

// The block data
$data = $args['data'];

// Dynamic block ID
$block_id = 'posts-loop-block-' . $block['id'];

// The block ID
$block_id = $args['block_id'];

// The block class names
$class_name = $args['class_name'];
?>


<div id="<?php echo $block_id; ?>" class="<?php echo $class_name; ?>">
    <!-- Our front-end template to loop the posts -->
    <?php
    if( $data['posts']->have_posts() ) {
        while( $data['posts']->have_posts() ) {
            $data['posts']->the_post(); ?>
            <div class="post">
                <h2><?php the_title(); ?></h2>
                <div class="post-content">
                    <?php the_excerpt(); ?>
                </div>
            </div>
            <?php
        }
    }
    ?>
</div>

All of the data exposed to our block’s render template is found in the $args variable.

The response of WP_Query is exposed to this render template in $data['posts']. This is because of the work we did in /blocks/posts-loop/block.php. Here’s the line specifically:

// Create a new WP_Query instance
$posts = new WP_Query( $queryArgs );

// Expose the response of WP_Query to the render template
$data['posts'] = $posts;

Using the block

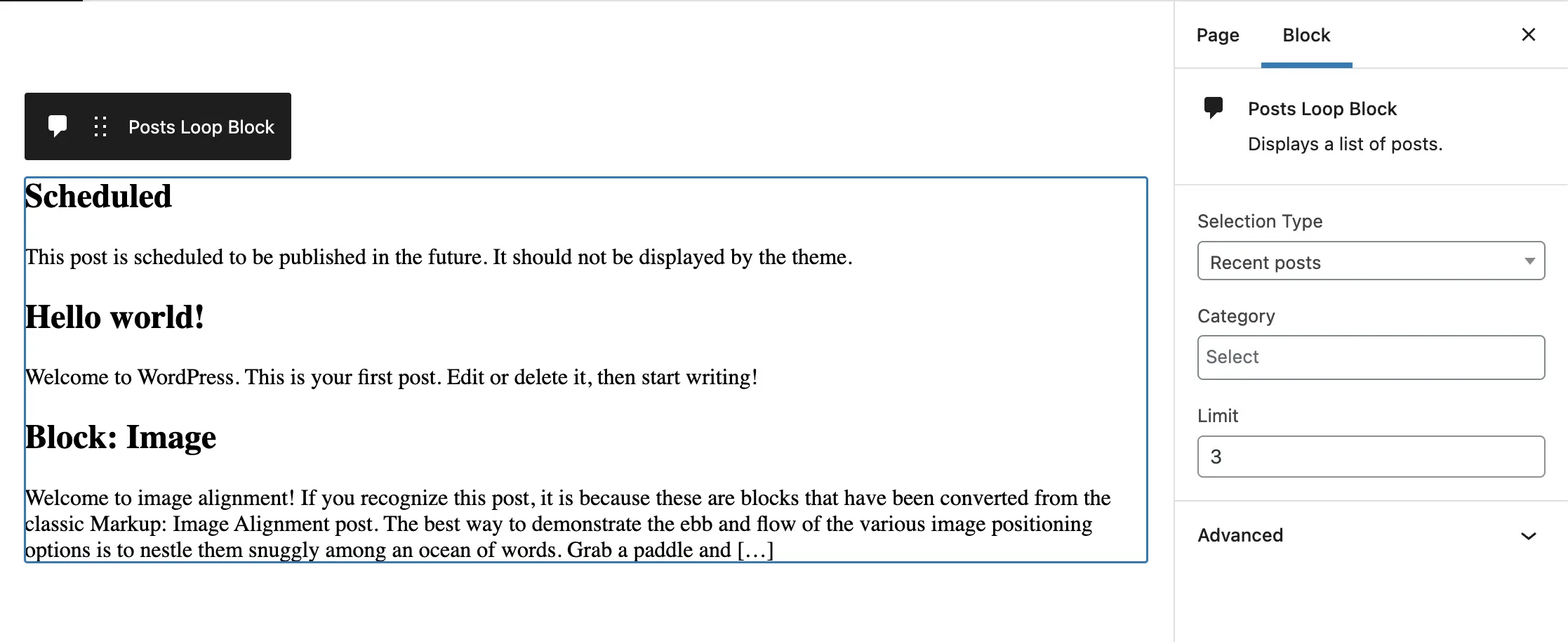

"Block backend UI"

This is what our block looks like when we insert it into the editor. The block’s preview is on the left in the content column and our block’s fields are in the right sidebar.

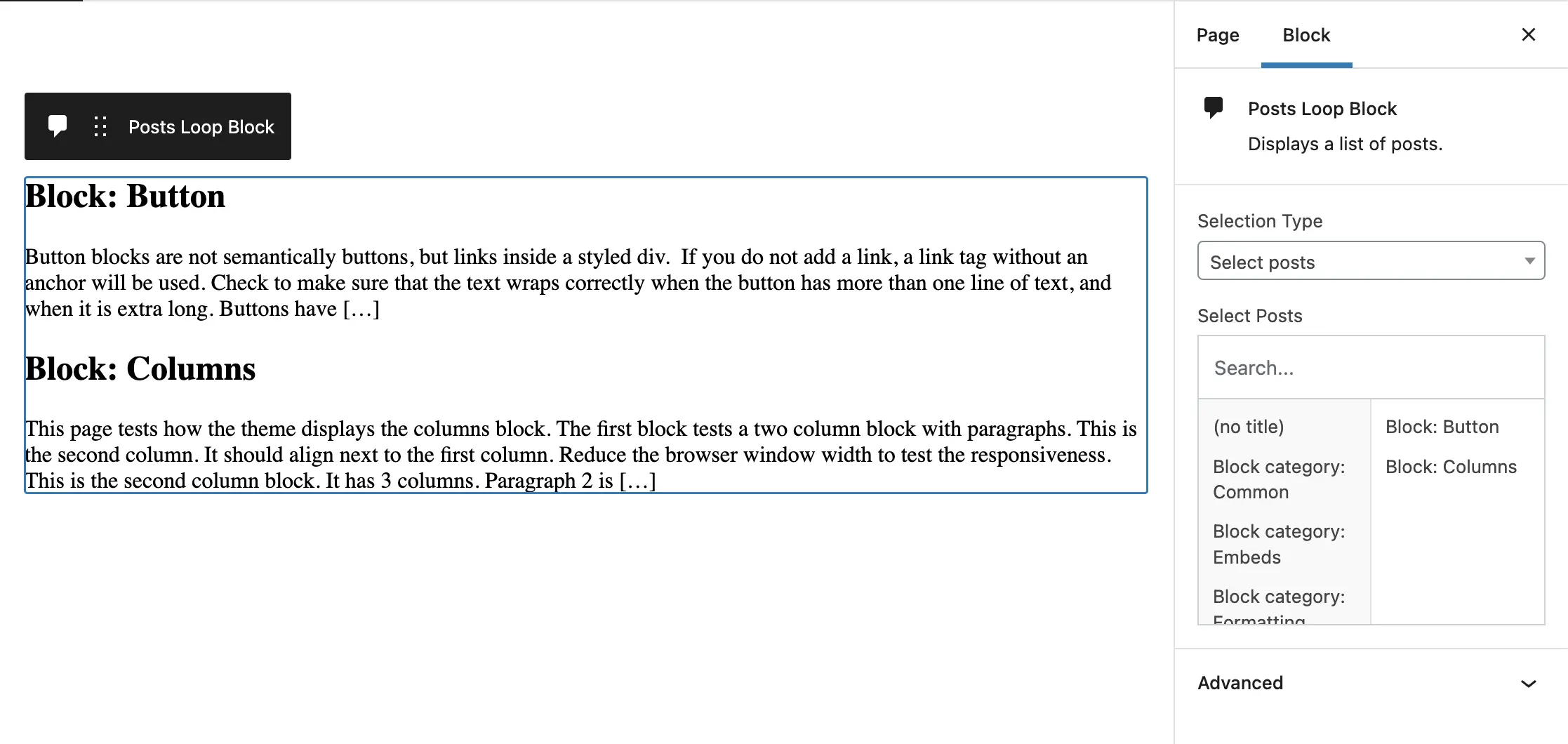

"Block backend UI - Select Posts"

If I change the “Selection Type” from Recent to Select posts I’ll be able to use the “Select Posts” relationship field.


🤜 🤛 You did it!

If you've followed along, let me know how this went or if you have any questions.
@Joey_Farruggio or joey@joeyfarruggio.com
